Twin Mini Bagger | Vertical Form Fill & Seal Packaging Equipment

Dual-Lane VFFS System

Twin Mini Bagger: Two Machines, One Compact Footprint

For production managers who need to scale output without scaling floor space, the BPSG Twin Mini Bagger — also called the Duplex Mini Bagger — delivers exactly that. Two independently operating VFFS (Vertical Form Fill & Seal) BPS Mini Bagger heads run in parallel, fed by a shared Z-bucket conveyor and a 10-head combination scale with stainless-steel platform. The result is a true dual-lane automated packaging system that fills and seals pre-formed bags at two simultaneous positions.

With 45 years of packaging equipment expertise, Barrington Packaging Systems Group engineers these twin systems to integrate seamlessly into existing production lines. FDA-compliant construction is standard; USDA-compliant options are available on request. Every system ships with BPSG's industry-leading two-year parts and labor warranty — The Barrington Advantage.

Request a Quote  Call 888-814-7999

Twin Mini Bagger filling pita chips into pre-formed bags with a multihead combination scale

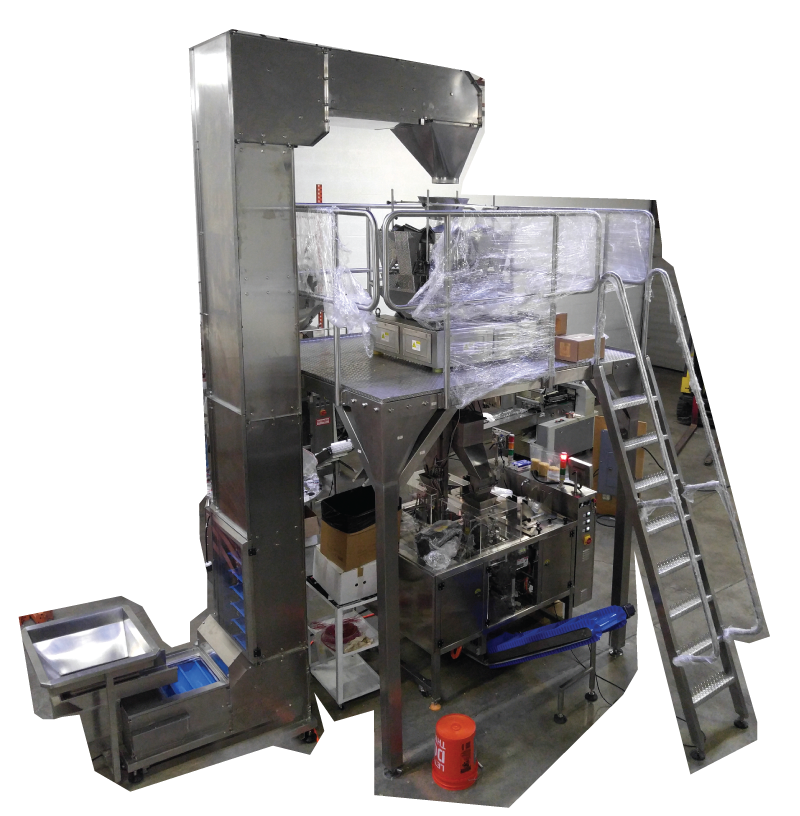

BPS Mini Bagger Twin for pre-formed bag and pouch packaging
System Architecture

Complete Automated Packaging System — What's Included

The Twin Mini Bagger is sold as a fully integrated system, not as isolated components. Every element is engineered to communicate and operate as a coordinated production line.

Z-Bucket Conveyor

Gently elevates bulk product from floor-level infeed to scale height. Vibratory in-feed ensures consistent metering, protecting fragile products like pita chips, snack mixes, and hard candy during transfer.

10-Head Combination Scale

Stainless-steel platform multihead scale ensures accurate, repeatable target weights per bag — eliminating giveaway and maintaining compliance on catch-weight products. Compatible with a wide range of dry free-flowing products.

Twin VFFS BPS Mini Baggers

Two BPS Mini Bagger VFFS heads operate in parallel. Each head forms, fills, and seals its own package cycle independently, doubling effective bag output from a single combined platform. Handles pillow, gusset, and stand-up pouch formats.

Quick-Release Take-Away Conveyor

Tool-free quick-release design allows rapid changeover and cleaning. Filled sealed bags are conveyed directly downstream to checkweigher, labeler, or case packer without manual handling.

Twin Mini Bagger — Key Specifications

Parameter Specification
System ConfigurationDual-lane (2 × BPS Mini Bagger VFFS heads)
Scale Type10-Head Multihead Combination Scale, Stainless Steel
InfeedZ-bucket elevator with vibratory metering
Bag FormatsPillow bag, gusseted bag, 3-side seal, stand-up pouch (pre-formed)
Bag Width RangeConsult BPSG for product-specific sizing
Film CompatibilityBOPP, PE, laminate, foil structures, metalized film
Regulatory ComplianceFDA compliant standard; USDA compliant optional
SanitationStainless steel food-contact surfaces; washdown-friendly design
Take-Away ConveyorQuick-release, tool-free removal for cleaning & changeover
Warranty2-Year Parts & Labor — The Barrington Advantage
Applications

Products & Industries Served

The Twin Mini Bagger's dual-lane VFFS architecture is well-suited to any dry, free-flowing, or semi-rigid product that benefits from automated fill-and-seal in pre-formed or film-formed bags. BPSG has over four decades of experience matching the right system to the right product.

Snack Foods

Pita chips, pretzels, popcorn, corn chips, pork rinds, cheese puffs — the Z-bucket conveyor and vibratory infeed handle irregular shapes without excessive breakage.

Candy & Confections

Hard candy, gummies, chocolate-covered nuts, and mixed confections. The combination scale ensures accurate piece counts and target weights meet label declarations.

Beef Jerky & Dried Meats

Sliced, formed, or chunked jerky. USDA-compliant builds available. Pair with BPSG's film sourcing service to specify the correct barrier structure for shelf-life requirements.

Cannabis & Hemp Products

THC gummies, CBD products, and infused snacks requiring child-resistant or tamper-evident packaging. Ask BPSG about compliant film and bag specifications for your state requirements.

Nuts, Seeds & Trail Mix

Accurate weighing is critical for high-value nut mixes. The 10-head combination scale minimizes giveaway while maintaining output speed across both lanes.

Hardware & Non-Food

Fasteners, parts kits, craft supplies, and small hardware items that require accurate piece-count or weight-based filling in retail or industrial pouches.

Throughput Strategy

Why Run Two Lanes Instead of One?

A single-lane mini bagger is a sound entry point for automation. But when demand increases or you need redundancy, adding a second standalone machine means doubling your maintenance obligations, your operator requirement, and your capital equipment line items — while still using more floor space than a single twin system.

The Twin Mini Bagger solves this by sharing the infeed, scale, and conveyor infrastructure between both lanes. You get near-double the bag output with a significantly smaller total footprint than two independent machines, and a single integrated control interface reduces the learning curve for your production team.

BPSG's application engineers will model your target speed, bag size, and product characteristics before recommending the right configuration. Call 888-814-7999 or submit a quote request to begin the conversation.

Start Your Application Review

Twin vs. Single-Lane at a Glance

Factor Single-Lane Twin System
Bag OutputBaseline~2× Baseline
Floor Space1 machine footprintLess than 2×
Shared InfeedNoYes
Shared ScaleNoYes
Operators Required1 per machine1 for both lanes
Changeover Points1Shared infrastructure

Ready to Automate Your Packaging Line?

BPSG has 45 years of experience engineering packaging solutions for snack food, confection, jerky, cannabis, and specialty food producers. Let's find the right system for your product.

Request a Quote   Call 888-814-7999

Explore Related Mini Bagger Systems

Watch It Run

More Videos: Twin Mini Bagger

Frequently Asked Questions

What is the Twin (Duplex) Mini Bagger?

Two independently operating VFFS mini bagger heads in one compact footprint, so you scale output without scaling floor space. FDA-compliant construction is standard and USDA-compliant options are available.

What is included in the Twin Mini Bagger system?

A vibratory in-feed elevator for gentle metering, a stainless-steel multihead combination scale for accurate target weights, two VFFS heads running in parallel, and a tool-free quick-release take-away conveyor to a checkweigher, labeler or case packer.

Which products does the Twin Mini Bagger handle?

Dry free-flowing and fragile products such as pita chips, snack mixes and hard candy, packaged in pillow, gusset and stand-up pouch formats.
